Interchangeable Hub Propellers: 6 Practical Benefits

Category: Propeller GuidesTopic: Interchangeable hub systemsTechnical review: August 19, 2026

Direct answer: An interchangeable hub propeller uses a removable hub between the propeller body and the propeller shaft. Xspeed interchangeable models normally come with the matched hub installed. When needed, the propeller body and compatible hub can also be ordered separately. Engine, gearcase, spline, rotation and hardware still have to match.

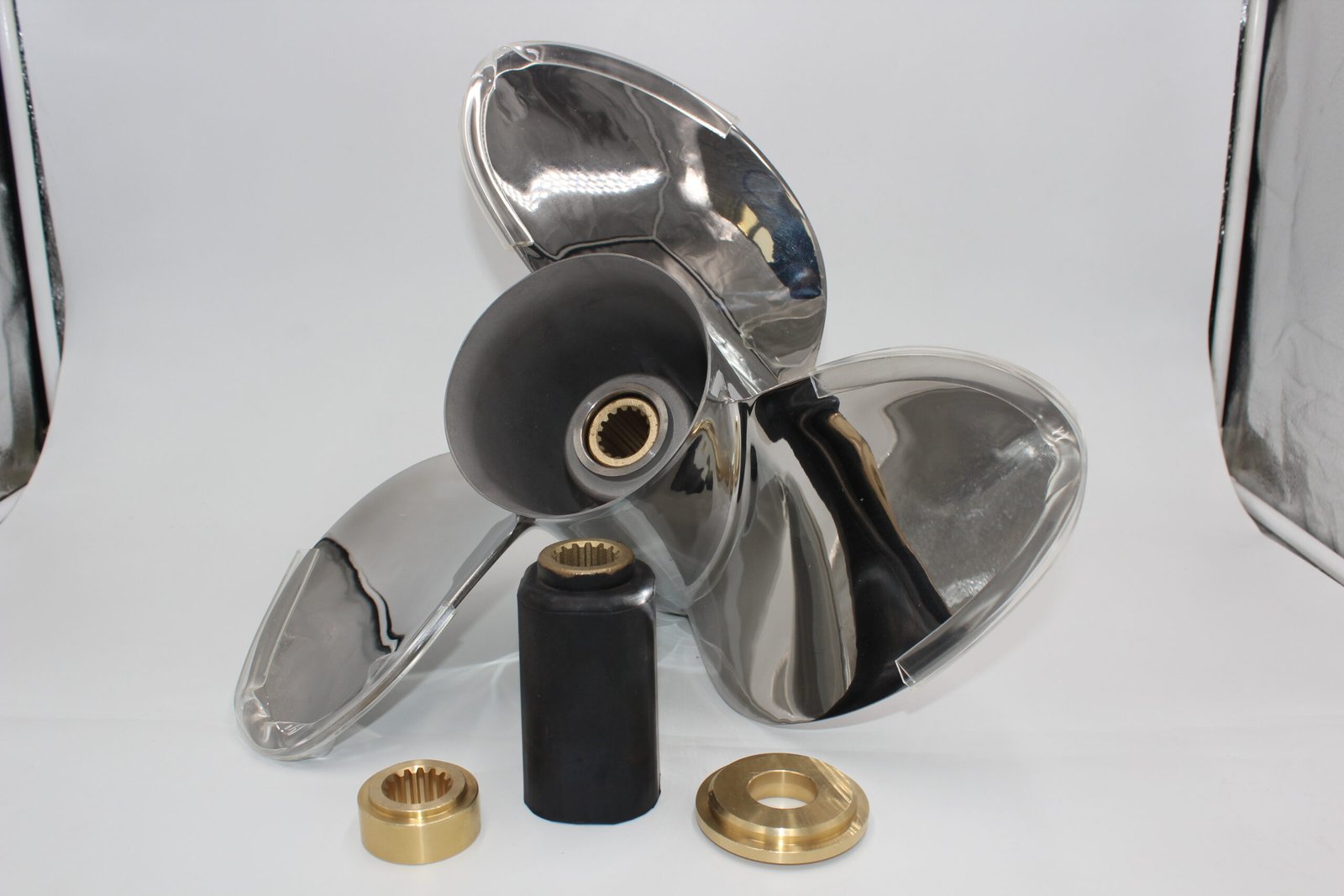

Original Xspeed stainless steel propeller photo with installed interchangeable hub
Original Xspeed product photo. The matched hub is normally installed; the propeller body and compatible hub can also be ordered separately.

What Is an Interchangeable Hub Propeller?

Instead of a permanent pressed-in hub, this system uses a removable drive sleeve or hub kit inside the propeller barrel. The propeller body determines diameter, pitch, blade count and rotation; the hub connects it to the specified propeller shaft.

How Xspeed supplies this series: the matched hub is normally installed in the propeller by default. A propeller body or compatible replacement hub can also be purchased separately when requested. Separate parts still need to be confirmed against the engine and propeller series.
Original exploded view of an interchangeable hub propeller and hub components
Original component arrangement with promotional and contact text removed. The propeller and compatible hub can be supplied separately when requested.

Six Practical Benefits

  1. Faster Hub Service

    A removable hub can often be inspected or replaced without pressed-hub shop work.

  2. Simpler Replacement

    If the propeller body is serviceable, replacing the matched hub may be quicker than replacing the complete assembly.

  3. More Supported Applications

    One propeller family may fit several approved engine applications by using the correct hub version.

  4. Flexible Purchasing

    Choose the standard assembled propeller, or request the propeller body and compatible hub separately.

  5. Easier Spare Planning

    A compact spare hub is easier to store than another complete propeller, provided it matches the system.

  6. Convenient Propeller Changes

    Compatible hardware can simplify changing approved propeller bodies for load or pitch testing.

Hub designs are not identical: some use sacrificial parts, while others may be reusable after inspection. Follow the instructions for the exact hub series and replace damaged components before operation.

Interchangeable Hub vs. Pressed-In Hub

Point Interchangeable hub Pressed-in hub
Hub installation Drop-in or assembled with system-specific parts Usually pressed into the propeller barrel
Routine service Often replaceable with normal propeller tools Typically handled by a propeller shop
Engine fitment Determined by the approved hub-kit matrix Built into that propeller’s pressed hub
Impact behavior May be sacrificial, cushioning or reusable, depending on design Rubber cushion may slip or separate after wear or impact
Main limitation More part numbers and hardware sequences to verify Hub replacement usually needs specialized equipment

What to Check Before Ordering

  • Engine identification: brand, model, year, horsepower and gearcase family.
  • Propeller shaft: spline count, shaft diameter and any special adapter requirement.
  • Gearcase and exhaust: gearcase size plus thru-hub or other exhaust configuration.
  • Propeller specification: diameter, pitch, blade count and RH or LH rotation. Use the propeller size and marking guide if the existing size is unclear.
  • Hub family: confirm that the propeller body and every hub component belong to an approved combination.
  • Installation hardware: thrust washer, sleeve, spacer, washer, nut and locking device must follow the applicable diagram.
  • Torque: use the value for the exact engine and hub system, not a generic number. The outboard propeller installation guide explains the safety sequence.
A useful buying rule: choose the propeller for the boat’s performance requirement, then verify the hub kit against the engine. Starting with the word “interchangeable” alone is not enough to confirm fitment.

When a Replaceable Hub May Not Be the Right Choice

A modular system is not automatically an upgrade for every boat. Stay with the specified hub arrangement when the engine or propeller maker does not list a compatible kit, when a special surface-piercing or racing application requires dedicated hardware, or when the propeller barrel is designed only for a pressed hub.

After a strike, replacing the hub alone is appropriate only if the blades, barrel, shaft, seals and lower unit pass inspection. Vibration, visible distortion, fishing-line damage or metal contact marks are reasons to stop and inspect the complete installation.

Confirm the Propeller and Hub as One System

Use engine data and current propeller markings to narrow the propeller body, then confirm the exact hub kit and hardware before ordering.

Use Propeller Finder
Browse Interchangeable Propellers
Ask Xspeed

Frequently Asked Questions

Is an interchangeable hub propeller universal?

No. The propeller series, hub, engine, gearcase, shaft, rotation and hardware must be an approved combination.

Is the hub included with an Xspeed interchangeable propeller?

The matched hub is normally installed by default. The propeller body and compatible hub can also be ordered separately when requested.

Will a replaceable hub protect the lower unit?

Some designs cushion shock or propeller strikes, but no hub can guarantee protection from every impact.

Can I install the hub myself?

Many removable hubs use normal propeller tools. Follow the correct parts sequence and torque specification for the engine and hub series.
