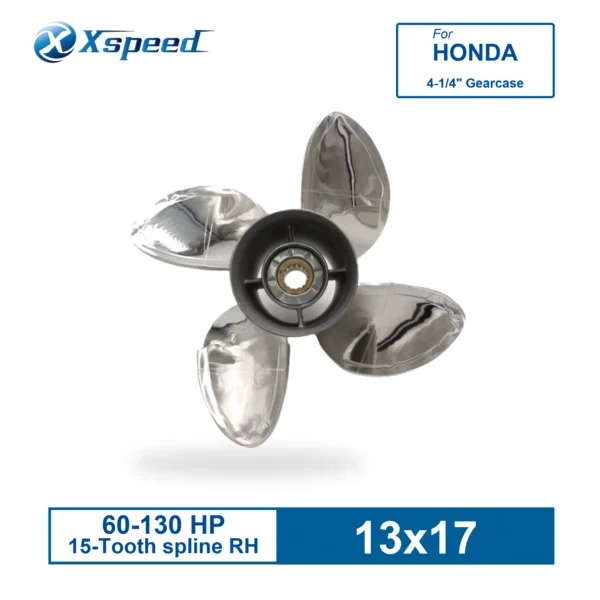

13×17 Stainless Steel Propeller for Honda Replacement for OEM 58134-ZW1-A17HR 4 Blade 15 Tooth RH 60-130HP Outboard Propeller
$251.55
- 13×17 stainless steel, 4-blade, RH
- For compatible Honda 60-130HP outboards with 15 Tooth spline and 4-1/4 inch gearcase
- Matching interchangeable hub kit included
OEM cross-reference: Replaces Honda 58134-ZW1-A17HR
Aftermarket Part – Not Genuine OEM.
10 in stock
This 13×17 stainless steel propeller is configured with 4 blades and right-hand (RH) rotation for compatible Honda 60-130HP outboards. It uses a 15 Tooth spline and 4-1/4 inch gearcase configuration and is supplied with a matching interchangeable hub kit.
Size13×17
Blades4
RotationRH
Spline15 Tooth
Specifications and Fitment
| Compatible Brand | Honda |
|---|---|
| Horsepower Range | 60-130HP |
| Material | Stainless Steel |
| Blade Count | 4 |
| Diameter | 13 in |
| Pitch | 17 in |
| Rotation | RH |
| Spline | 15 Tooth |
| Gearcase | 4-1/4 inch |
| Xspeed SKU | ICSDR-130F17OL |
| OEM Cross-reference | Replaces Honda 58134-ZW1-A17HR |
Honda 60-130HP Size Options
Use diameter, pitch, blade count, rotation, spline count, and gearcase size together when selecting a replacement. Confirm engine model and current propeller markings before ordering.
| Blades | Diameter (in) | Pitch (in) | Rotation | Xspeed SKU | OEM Cross-reference |
|---|---|---|---|---|---|
| 3 | 14 | 11 | RH | ICSDR-140-11OL | / |
| 3 | 14 | 12 | RH | ICSDR-140-12OL | / |
| 3 | 13 3/4 | 13 | RH | ICSDR-138-13OL | / |
| 3 | 13 1/2 | 15 | RH | ICSDR-135-15OL | / |
| 3 | 13 1/4 | 17 | RH | ICSDR-133-17OL | / |
| 3 | 13 1/4 | 17 | LH | ICSDL-133-17OL | / |
| 3 | 13 | 19 | RH | ICSDR-130-19OL | Replaces Honda 58130-ZW1-019AH |
| 3 | 13 | 19 | LH | ICSDL-130-19OL | / |
| 3 | 13 7/8 | 15 | RH | ICSDR-139-15OL | / |
| 3 | 13 7/8 | 17 | RH | ICSDR-139-17OL | / |
| 3 | 13 7/8 | 17 | LH | ICSDL-139-17OL | / |
| 3 | 13 7/8 | 19 | RH | ICSDR-139-19OL | / |
| 3 | 13 7/8 | 19 | LH | ICSDL-139-19OL | / |
| 3 | 14 | 21 | RH | ICSDR-140-21OL | Replaces Honda 58133-ZY3-A21AH |
| 3 | 14 | 21 | LH | ICSDL-140-21OL | Replaces Honda 58133-ZY3-B21AH |
| 3 | 14 | 23 | RH | ICSDR-140-23OL | / |
| 4 | 13 1/4 | 15 | RH | ICSDR-133F15OL | Replaces Honda 58134-ZW1-A15HR |
| 4 | 13 | 17 | RH | ICSDR-130F17OL | Replaces Honda 58134-ZW1-A17HR |
| 4 | 13 | 17 | LH | ICSDL-130F17OL | Replaces Honda 58134-ZW1-B17HR |
| 4 | 13 | 19 | RH | ICSDR-130F19OL | Replaces Honda 58134-ZW1-A19HR |
| 4 | 13 | 19 | LH | ICSDL-130F19OL | Replaces Honda 58134-ZW1-B19HR |
Supplier and Product Notes
- Factory-direct stainless steel replacement propeller for marine aftermarket applications.
- Interchangeable hub design supports service replacement and inventory flexibility.
- Propeller geometry, fitment dimensions, and dynamic balance are checked during production.
- OEM-compatible aftermarket part supplied under the Xspeed brand.
- OEM/ODM support is available for distributors, repair networks, and private-label programs.
Compatibility Notice
Confirm engine model, horsepower, gearcase size, spline count, diameter, pitch, and rotation before purchase. Cross-reference numbers are provided for identification only. Aftermarket Part – Not Genuine OEM.
Product Videos
Product Overview Video
Factory and Product Detail Video
| Weight | 13 kg |
|---|---|
| Dimensions | 38.7 × 34.5 × 21 cm |
| Compatible Brand | Honda |
| Material | Stainless Steel |
| Blade Count | 4 Blades |
| Diameter | 13 in |
| Pitch | 17 in |
| Rotation | RH |
| Spline | 15 Tooth |
| Gearcase | 4-1/4 inch |
| Horsepower | 60-130HP |
| OEM Cross-reference | Replaces Honda 58134-ZW1-A17HR |
| Hub Type | Interchangeable Hub Kit |
